Soil nail wall engineering for Los Angeles projects
Los Angeles projects frequently involve steep hillside lots, tight property lines, basement excavations, existing adjacent structures, utilities, streets, retaining walls, and significant seismic demands. A soil nail wall can be an efficient earth retention system when the site geometry, soil conditions, construction access, and geotechnical recommendations support staged top-down excavation.
Blue Horizon Consulting Engineers Inc. provides structural engineering for soil nail walls used in temporary shoring, permanent retaining walls, slope stabilization, shotcrete retaining systems, hillside improvements, and excavation support. Our design approach coordinates geotechnical criteria, structural load path, facing design, drainage, corrosion protection, constructability, and permit requirements.
What is a soil nail wall?
A soil nail wall reinforces the existing soil mass by installing closely spaced steel bars into drilled holes and grouting them in place. Excavation typically proceeds in lifts from the top down. After each lift, soil nails are installed and a reinforced shotcrete facing is placed to support the exposed face.
Soil nails
Steel reinforcing bars are installed into drilled and grouted holes to improve internal stability and resist tensile forces within the reinforced soil mass.
Shotcrete facing
Reinforced shotcrete facing, welded wire reinforcement, bearing plates, and nail heads help support the excavation face and distribute loads between soil nails.
Drainage components
Drainage boards, weep holes, subdrains, and collection systems help control water pressure behind the wall and improve long-term performance.
Permanent protection
Permanent soil nail walls may require corrosion protection, durable facing, architectural finish coordination, and additional detailing for service life.
Common Los Angeles applications
- Hillside homes in Hollywood Hills, Bel Air, Beverly Hills, Pacific Palisades, Malibu, Studio City, Silver Lake, and surrounding hillside communities
- Basement excavations and subterranean parking for residential, apartment, commercial, and mixed-use projects
- Temporary excavation support along property lines, streets, driveways, utilities, and adjacent improvements
- Permanent shotcrete retaining walls for steep lots, grade separations, slope stabilization, and site improvements
- Pool excavations, cantilevered decks, driveway cuts, accessory structures, and retaining systems on constrained residential sites
- Stabilization of existing slopes, failed slopes, erosion-damaged cuts, and construction-related grade changes
Temporary and permanent soil nail design
Temporary soil nail shoring
Temporary soil nail walls support excavations during construction until the permanent basement wall, retaining wall, foundation, or building structure is completed. Temporary systems must consider construction sequence, excavation lifts, surcharge loads, adjacent structures, and safety during each stage of work.
Permanent soil nail retaining walls
Permanent systems remain in service after construction and require additional engineering for long-term loading, corrosion exposure, drainage, waterproofing coordination, facing durability, seismic loading, maintenance access, and architectural finish requirements.
Key structural design considerations
Geotechnical coordination
The soil nail layout must be coordinated with soil strength, groundwater, corrosion potential, slope stability, seismic recommendations, and temporary excavation stand-up time identified by the geotechnical engineer.
Internal stability
Design checks include nail tensile capacity, pullout resistance, bond length, spacing, inclination, reinforced soil mass behavior, and connection of the nail head to the shotcrete facing.
External and global stability
The wall system must be evaluated for sliding, overturning, bearing, global slope stability, compound failure surfaces, seismic loading, and interaction with adjacent structures or slopes.
Facing design
Shotcrete thickness, reinforcement, welded wire mesh, bearing plates, studs, headed anchors, construction joints, and drainage penetrations should be coordinated with the wall height and nail pattern.
Water and drainage
Drainage is critical because hydrostatic pressure can significantly increase wall demand. Permanent walls require coordinated waterproofing, subdrains, weeps, and surface water control.
Constructability

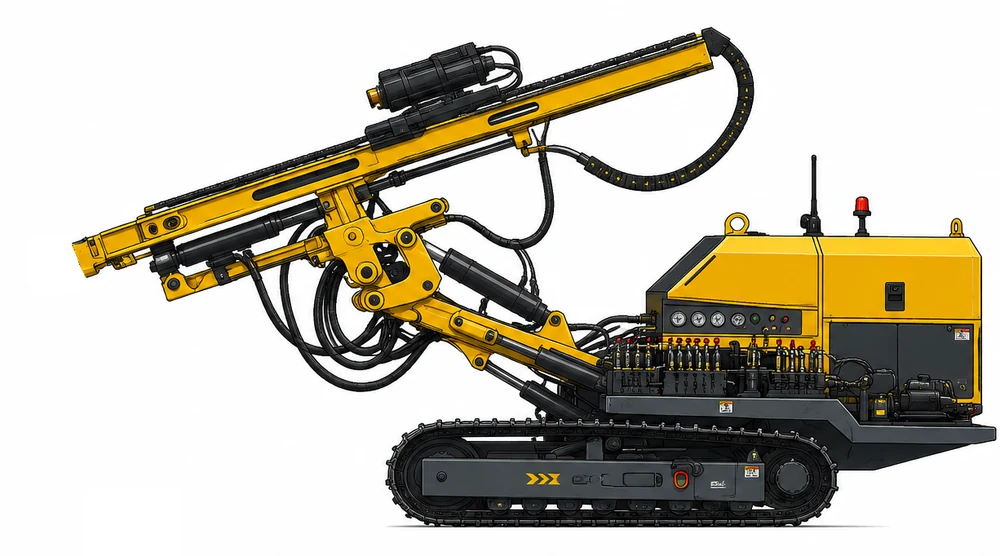

Drilling access, equipment clearance, overhead restrictions, property-line limits, nail inclination, excavation lift height, shotcrete placement, testing, and inspection requirements affect the final design.
Soil nail vs tieback vs soldier pile systems
Soil nails are passive reinforcement elements that generally develop resistance as the soil mass deforms. Grouted tiebacks are typically prestressed anchors that actively support a wall. Soldier pile and lagging walls use vertical piles and lagging to retain soil, with optional tiebacks, rakers, or internal bracing for deeper excavations. The correct system depends on soil conditions, wall height, movement limits, property rights, adjacent structures, construction access, and project budget.
Typical soil nail engineering scope
- Review of architectural drawings, grading plans, survey, site constraints, and geotechnical recommendations
- Selection of preliminary wall layout, nail spacing, nail length, nail inclination, and excavation lift sequence
- Internal stability, external stability, global stability, seismic, surcharge, and facing design checks
- Shotcrete facing design, reinforcement details, bearing plates, nail head details, and drainage coordination
- Temporary shoring or permanent retaining wall drawings, structural calculations, and plan check responses
- Construction-phase support for submittals, field questions, observation items, and contractor coordination
Los Angeles service areas
We provide soil nail wall engineering support for projects throughout Los Angeles County, including Los Angeles, Beverly Hills, Santa Monica, West Hollywood, Hollywood Hills, Pacific Palisades, Malibu, Pasadena, Glendale, Burbank, Long Beach, South Bay, San Fernando Valley, and nearby Southern California communities.
Blue Horizon soil nail design services
Blue Horizon Consulting Engineers Inc. provides soil nail design and earth retention structural engineering for Los Angeles County and Southern California. Our services include soil nail walls, reinforced shotcrete facing, temporary shoring, permanent retaining walls, hillside stabilization, retaining wall coordination, and construction support coordinated with geotechnical recommendations.
