Soldier pile and lagging shoring for Los Angeles projects

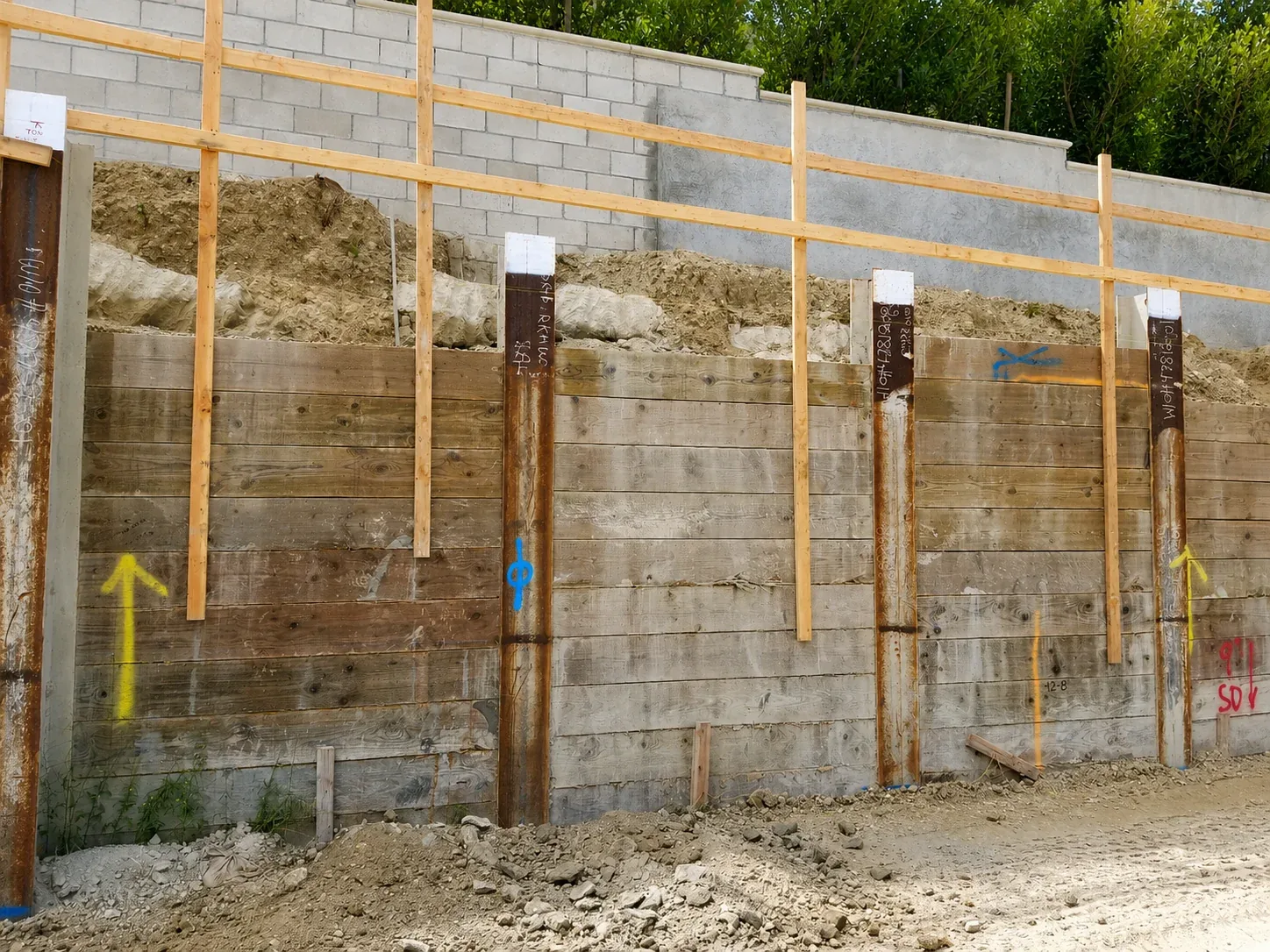

Soldier pile and lagging is one of the most common excavation support systems used in Los Angeles County. The system typically consists of vertical steel soldier piles installed at regular spacing, with timber, concrete, or steel lagging placed between the piles as excavation progresses. The system may be designed as cantilevered shoring, internally braced shoring, or tieback-supported shoring depending on wall height, soil conditions, surcharge loads, property-line constraints, and allowable wall movement.
Blue Horizon Consulting Engineers Inc. provides structural engineering for temporary and permanent soldier pile and lagging systems for residential, commercial, industrial, hillside, and redevelopment projects.
Where soldier pile and lagging is commonly used
Basement excavation support
Shoring for residential basements, multifamily projects, mixed-use developments, underground parking, and commercial excavations near property lines.
Hillside and slope cuts
Excavation support for hillside lots, stepped building pads, custom homes, pool excavations, driveway cuts, and grade transitions in steep terrain.
Temporary shoring
Construction-phase shoring where the final building, basement wall, retaining wall, or foundation system will provide long-term support after construction.
Permanent shoring
Soldier pile walls that remain as part of the final earth retention system, often with shotcrete facing, drainage, waterproofing, and corrosion protection.
Key structural design considerations
Earth pressure and surcharge loads
Design must consider active, at-rest, and seismic earth pressures, sloping backfill, traffic surcharge, construction surcharge, adjacent foundations, equipment loads, and temporary construction staging.
Soldier pile design
Steel piles are checked for bending, shear, embedment depth, deflection, fixity, corrosion exposure, spacing, drilled-hole diameter, concrete encasement, and constructability.
Lagging design
Lagging is designed for soil pressure between piles and coordinated with excavation sequence, pile spacing, drainage requirements, and temporary or permanent service life.
Deflection control
Wall movement must be limited where shoring is near existing buildings, property lines, utilities, streets, sidewalks, pools, walls, or sensitive improvements.
Tieback-supported soldier pile walls
For taller excavations or movement-sensitive sites, soldier pile and lagging walls are often supported with grouted tiebacks. Tiebacks reduce bending demand in the soldier piles, reduce wall deflection, and allow deeper excavations with a more efficient structural system.
Tieback design requires coordination of anchor inclination, bonded length, unbonded length, proof testing, lock-off load, property-line limitations, corrosion protection, and geotechnical recommendations. Easements or neighbor permissions may be required when anchors extend beyond the project property line.
Los Angeles project conditions
- Basement shoring for multifamily and mixed-use projects in dense urban neighborhoods
- Hillside shoring in Hollywood Hills, Bel Air, Beverly Hills, Pacific Palisades, Malibu, Studio City, and surrounding areas
- Property-line excavation support next to existing structures, streets, sidewalks, utilities, and retaining walls
- Temporary shoring for new foundations, basements, pools, and grade changes
- Permanent soldier pile retaining systems for constrained sites and steep terrain
- Seismic earth pressure design for high-seismic Southern California conditions
Coordination with geotechnical recommendations
Soldier pile and lagging design depends heavily on the geotechnical report. We coordinate the structural design with equivalent fluid pressures, seismic increments, passive resistance, allowable lateral bearing, pile embedment requirements, groundwater conditions, corrosion potential, slope stability, temporary excavation recommendations, and tieback bond values where applicable.
Typical deliverables
- Soldier pile and lagging shoring plans
- Temporary or permanent shoring structural calculations
- Soldier pile size, spacing, embedment, and connection details
- Lagging details, drainage coordination, and excavation sequence notes
- Tieback layout, anchor forces, testing notes, and connection details when applicable
- Coordination with architectural, civil, geotechnical, and construction teams
- Plan check response and construction support
Why choose Blue Horizon
Blue Horizon Consulting Engineers Inc. understands the connection between shoring, retaining walls, deep foundations, soil nail walls, tiebacks, helical anchors, shotcrete walls, and building foundations. This allows us to develop practical soldier pile and lagging systems that support safe excavation, efficient construction, and code-compliant earth retention for Los Angeles projects.
